The Macro Architectural Shift: Why Non-Overflow Drains Dominate Modern Commercial & Residential Design
An in-depth industrial analysis of fluid dynamics, hygiene engineering, and basin architecture driving the global demand for China lavatory drains without overflow.
Fluid Mechanics & The Eliminative Design Paradigm
Over the past decade, the luxury commercial, hospitality, and residential architectural landscapes have undergone a profound aesthetic and functional evolution. The transition toward vessel sinks, natural stone basins, solid-surface composite lavatories, and minimalist glass bowls has rendered traditional overflow channels obsolete. Standard overflow channels engineered into traditional ceramic sinks harbor persistent stagnation zones, moisture retention, and biofilm colonization that are notoriously difficult to sanitize.
Leading China lavatory drain without overflow manufacturers and factories have responded by completely redesigning the fluid internal geometry of non-overflow waste fittings. By removing the lateral overflow aperture from the brass body stem, engineers eliminate internal cavities where water accumulates, thereby achieving a 100% direct-flow hydraulic path.
Critical Performance Metrics for Non-Overflow Drains
- Discharge Flow Rate: Engineered to achieve minimum 12.0 GPM (45.4 L/min) under standard head pressure, outperforming ASME minimum requirements.
- Hydro-static Sealing: Multi-ribbed EPDM and medical-grade silicone seals capable of sustaining 0.5 bar continuous static head pressure without micro-seepage.
- Mechanism Endurance: Spring-loaded click-clack pop-up mechanisms cycle-tested to exceed 100,000 actuation cycles under thermal loads (5°C to 80°C).
- Corrosion Resistance: Electroplated and PVD finishes withstand 240-hour Neutral Salt Spray (NSS) and 48-hour CASS testing.
Global Enterprise Procurement Requirements & Engineering Standards
A rigorous technical breakdown of international plumbing standards, metallurgical compliance, and quality verification protocols required by global tier-1 brands and building material distributors.
| Regulatory Standard | Geographic Focus | Technical Benchmark & Material Testing Requirements | China Factory Compliance Solution |
|---|---|---|---|
| ASME A112.18.2 / CSA B125.2 | North America (USA & Canada) | Mechanical strength, pull-out resistance, 1-1/4” NPSM thread tolerances, seal integrity under back-pressure. | Precision CNC machined solid brass body with UPC/cUPC certification listings and IAPMO listing marks. |
| NSF / ANSI 61 & NSF 372 | USA & Global Lead-Free Codes | Weighted lead content less than 0.25% across all wetted surface alloys; zero toxic heavy metal leaching. | Utilizes C37700 or DZR (Dezincification Resistant) lead-free brass ingots verified by ICP-OES spectral testing. |
| AB1953 Lead-Free Mandate | California & US Federal Safe Drinking Water Act | Stringent chemical extraction testing protocols for hardware connected to lavatory potability networks. | Fully documented chemical test reports provided per production heat batch with raw material certificates. |
| EN 31 / EN 274 | European Union & UK | G 1-1/4” thread sizing, minimum 0.6 L/s discharge flow rate under 120mm water head, thermal cycle durability. | Dual-thread production lines offering both US NPSM and EU G-thread pitch options for seamless multi-market supply. |
| ISO 9001:2015 Quality Management | Global Manufacturing | Complete traceability from raw brass ingot receiving to final product packaging and torque verification. | Fully integrated ERP tracking, in-process SPC monitoring, and 100% pneumatic bubble-leak test before packing. |
Metallurgical Rigor
Cheap die-cast zinc alloys suffer from intergranular corrosion and structural fracture under installation torque. Top China manufacturers enforce high-density hot forging using CW617N or C37700 brass to ensure crack-free performance during high-torque locknut installation.
Surface Finish Engineering
Advanced Physical Vapor Deposition (PVD) coating lines enable factory production of trending finishes including Matte Black, Brushed Gold, Rose Gold, Gunmetal, and Oil Rubbed Bronze, maintaining color consistency across multi-thousand unit batches.
Tailpiece Integration
To eliminate potential leakage points between the waste body and extension tube, modern OEM factories supply pre-assembled or seamless drawn brass tailpieces (17-gauge or 20-gauge brass) with precision-machined threads and recessed sealing washer seats.
Macro Industry Solutions: Tariff Mitigation & Dual-Origin Supply Chain Resilience
How leading manufacturers are restructuring production across China and Southeast Asia to provide global importers with duty-optimized, risk-averse sourcing solutions.
The Dual-Factory Ecosystem: China HQ + Southeast Asia Plant
In response to fluctuating geopolitical tariffs, anti-dumping duties, and global supply chain disruptions, top-tier sanitary hardware manufacturers like JANA Plumbing have established dual-origin production footprints. By maintaining primary research, heavy tooling, and high-precision CNC machining centers in Yuhuan, Zhejiang, China while expanding automated assembly, polishing, electroplating, and direct export facilities in Prachinburi, Thailand, manufacturers offer unmatched strategic agility.
This hybrid manufacturing strategy provides international procurement directors with the flexibility to shift production lines based on customs tariff dynamics while maintaining absolute uniformity in product engineering, metallurgical quality, and certification compliance.
- Unified QC Standard: Identical ISO 9001 procedures, tooling dies, and raw material specs across both factories.
- Optimized Customs Duty: Ability to ship under Thai Certificate of Origin (Form E/Form D) to lower land-in cost in North America and Europe.
- Uninterrupted Lead Times: Scalable capacity across 28,000+ square meters of total production space ensuring peak-season delivery security.
In-House Manufacturing Value Chain
Localized Support, OEM Customization, & Private Label Empowerment
How top China factories support global building material brands, retail DIY chains, and e-commerce leaders with flexible custom engineering and turnkey fulfillment.
Custom Engineering & CAD/CAM Modeling
Whether developing a proprietary anti-clogging basket design or custom decorative flange profile, in-house R&D teams provide 3D CAD modeling, rapid SLA prototyping within 48 hours, and custom forging mold production within 15 business days.
Retail-Ready & Contractor Packaging
Complete localized packaging solutions including high-visibility blister packs, eco-friendly FSC-certified color boxes, custom UPC barcode serialization, and comprehensive installation manuals tailored to North American or European retail specifications.
Comprehensive Warranty & Liability Shield
Reputable manufacturers back their brass lavatory drain assemblies with up to 10-year limited mechanical warranties and maintain global Product Liability Insurance policies (PLI) to protect international importers and retailers from downstream field liabilities.
Technical Roadmap: Next-Generation Innovations in Non-Overflow Lavatory Drains
An insider look at emerging manufacturing technologies, eco-friendly metallurgies, and smart drainage mechanisms shaping the next decade of sanitary engineering.
1. Hair-Catcher & Dual-Stage Filtration Without Flow Reduction
Future non-overflow lavatory drains feature removable brass/SS micro-strainer baskets concealed beneath the pop-up stopper cap. This design traps hair and debris without restricting water flow rate or compromising the sleek exterior appearance.
2. Tool-Free Quick-Lock Installation Mechanics
Engineers are deploying thread-optimized quick-tightening locknuts with integrated brass locking screws. Plumbers and DIYers can securely install the drain under thin or thick basin counter surfaces without requiring specialized pipe wrenches.
3. Low-Carbon Zero-Discharge Electroplating
With global ESG mandates tightening, modern factories in Zhejiang and Thailand are implementing closed-loop water recycling electroplating plants and solar-powered vacuum PVD chambers to minimize the carbon footprint per manufactured unit.
The B2B Buyer’s Inspection Checklist
When auditing a China lavatory drain manufacturer, verify these crucial technical details during sample evaluation:
- Wall Thickness Uniformity: Measure body stem wall thickness (must be ≥ 1.5mm to prevent cracking).
- Thread Pitch Precision: Test fit against a standardized 1-1/4" NPSM ring gauge.
- Gasket Elasticity: Confirm silicone seals return to original geometry after 24h compression test.
- Stopper Alignment: Ensure zero lateral wobble during spring actuation.
- Plating Adhesion: Perform cross-hatch tape test on finished surfaces.
Precision Drain Engineering: Featured Catalog (Part II)

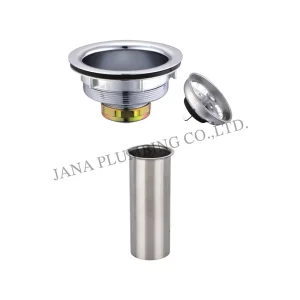

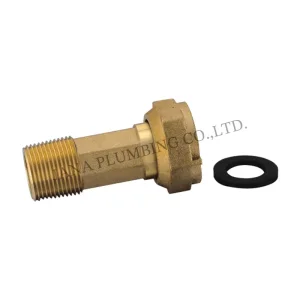

Complete OEM/ODM product range including disposal flanges, couplings, quick-connect sink strainers, and specialized plumbing replacement hardware.
