Engineering Excellence in Metal Adjustable Closet Flanges
A comprehensive analysis of metallurgical standards, structural alignment mechanics, and OEM manufacturing efficiency from China's leading plumbing cluster.
In modern commercial and residential Drain-Waste-Vent (DWV) systems, the closet flange serves as the critical mechanical interface anchoring the water closet to the structural subfloor while establishing a gas- and liquid-tight connection to the soil pipe. While plastic flange assemblies (PVC/ABS) have proliferated in lower-tier residential builds, professional plumbing contractors, commercial developers, and institutional specifiers increasingly demand Metal Adjustable Closet Flanges—specifically engineered with 360-degree rotating brass, stainless steel, or coated metal rings bonded to heavy-duty hubs.
As a premier China Metal Adjustable Closet Flange Supplier & Factory, JANA Plumbing Co., Ltd. (operating advanced manufacturing facilities in Yuhuan, Zhejiang, and Kabinburi, Thailand under Gateway Enterprise Corp) leverages nearly three decades of specialized metallurgical craftsmanship. This white paper examines the engineering parameters, localized application contexts, material performance advantages, and supply chain dynamics that position precision metal closet flanges as the definitive standard for code-compliant, leak-free plumbing infrastructure worldwide.
Structural Dynamics & Material Selection Parameters
Understanding why metal adjustable rings prevent ring shearing, subfloor stress cracking, and dangerous wax seal dislodgement.
360° Rotational Adjustment
Solid metal swivel rings allow effortless bolt alignment regardless of rough-in angular displacement. Eliminates forced pipe twisting during water closet seating.
High Tensile Ring Resistance
Forged C37700 brass or 304 stainless steel rings withstand extreme bolt torque (exceeding 120 in-lbs) without cracking or bending under uneven toilet loading.
Zero Flame Spread & Plenum Rated
Metallic construction complies fully with stringent commercial building codes regarding fire-stopping and plenum space installations where plastics are prohibited.
Key Technical Insight: Shear Stress Deflection Benchmarks
Under ASME A112.19.2 loading tests, plastic toilet flanges exhibit flexural deformation under lateral loads exceeding 300 lbs, resulting in micro-gaps within the wax seal. In contrast, metal adjustable closet flanges with forged brass or stainless steel rings show zero measurable deflection under static loads up to 1,000 lbs, preserving airtight integrity across decades of continuous use.
| Performance Parameter | Forged Brass Swivel Flange | 304 Stainless Steel Flange | Standard PVC Plastic Flange |
|---|---|---|---|
| Ultimate Tensile Strength | > 420 MPa | > 520 MPa | ~ 45 MPa |
| Thermal Expansion Coeff. | 20.0 µm/m·K | 17.2 µm/m·K | 52.0 µm/m·K (High Warp Risk) |
| Torque Resistance limit | 140 in-lbs+ | 160 in-lbs+ | < 45 in-lbs (Risk of Shearing) |
| Commercial Fire Rating | Non-combustible (Class A) | Non-combustible (Class A) | Requires Intumescent Collar |
| Corrosion Resistance | Dezincification Resistant (DZR) | Passivated 18/8 Chrome-Nickel | Chemical Resistant / Physical Weakness |
Localized Application Scenarios & Installation Paradigms
How specialized metal adjustable closet flanges solve complex structural, acoustic, and retrofit challenges across international markets.
1. High-Rise Commercial Concrete Slab Construction
In post-tensioned concrete slab structures across North America and Eastern Europe, soil pipes are cast directly into core slab penetrations. Structural settling often creates angular misalignments up to 15 degrees between the floor level and pipe stub. Metal adjustable offset closet flanges enable mechanical compensation without chipping structural concrete, maintaining strict floor line flushness.
2. Retrofit Over-Tile Remodeling Projects
When renovating historic or residential buildings, adding finished tile flooring elevates the subfloor height relative to the original cast iron or PVC drain hub. Extended-neck brass adjustable flanges bridge elevated finished floors seamlessly, securing directly to subfloor anchors without requiring sub-surface pipe extension welding.
3. Heavy Commercial & Public Restrooms
High-traffic facilities such as international airports, sports arenas, and healthcare institutions experience intensive routine maintenance and heavy dynamic load shifts. Forged metal flanges eliminate flange ear breakage caused by high-impact seating forces or aggressive commercial auger snaking during clog clearouts.
4. RV, Marine & Off-Site Modular Housing
Modular housing units and luxury RVs endure constant vibration, torsional flexing, and temperature fluctuations during transit. A rubber gasketed mechanical joint combined with a 360-degree stainless swivel ring provides the essential dynamic flexibility to prevent seal disruption while traveling.
Manufacturing Technology Roadmap & Industry 4.0 Standards
Pioneering advanced anti-corrosion alloys, automated precision machining, and smart inspection integration.
Lead-Free Brass Alloys
Pioneering low-lead (C37700 / C85700) alloys meeting strict AB1953 and NSF/ANSI 61 standard limits (< 0.25% Pb content) for environmentally responsible plumbing.
PVD Electro-Deposition
Physical Vapor Deposition (PVD) anti-corrosion barrier coatings providing 2,000+ hours of continuous salt-spray testing (ASTM B117) against aggressive sewage gases.
Press-Fit Seal Geometry
Integrating synthetic EPDM compression ring channels that replace traditional messy wax gaskets with clean, reusable elastomeric mechanical seals.
3D Optical Metrology
Every batch undergoes automated 3D laser coordinate scanning to ensure zero variance in swivel ring tolerance, bolt keyhole pitch, and thread depth.
China Supply Chain Integration & Dual-Plant Risk Mitigation
Unmatched raw material sourcing efficiency in Zhejiang combined with tariff-free international manufacturing in Thailand.
Global plumbing brand owners, big-box retailers, and wholesale distributors face significant supply chain vulnerabilities ranging from regional trade tariffs to unexpected port disruptions. JANA Plumbing Co., Ltd. resolves these challenges by offering a robust **Dual-Base Production Strategy**:
China Manufacturing HQ (Yuhuan, Zhejiang)
Located in world's premier brass hardware industrial cluster. Complete vertical integration from ingot smelting, hot-forge stamping, multi-axis CNC machining, to electroplating and retail blister packaging under a single roof.
- Direct access to high-purity brass raw materials.
- Rapid prototype tooling development (7–10 days).
- High automation manipulator robotics for mass volume consistency.
Thailand Facility (Gateway Enterprise Corp)
Operational since December 2023 in Kabinburi Industrial Zone, Prachinburi. Spanning 14,400 square meters with modern automated stamping lines, providing a reliable second country of origin.
- 100% tariff-mitigated shipping route to North America.
- Identical ISO 9001 quality system and tooling specs.
- Seamless dual-sourcing options for high-volume contract buyers.
International Standard Compliance & Testing Protocols
Every closet flange model undergoes rigorous laboratory testing to fulfill UPC, cUPC, IAPMO, ASME, and CSA certifications.
ASME A112.18.2 / CSA B125.2
Full mechanical compliance testing for plumbing waste fittings, ensuring exact dimensional interchangeability with all standard North American water closet bases.
UPC / cUPC IAPMO Certification
Certified product listings (Certificate Nos. 6229, 8175, 12307) accepted by building inspectors and municipal codes across all US states and Canadian provinces.
ISO 9001:2015 Quality Management
Documented end-to-end quality control from raw material spectrographic analysis to final dimensional laser verification and pressure drop testing.

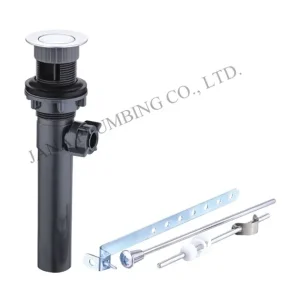

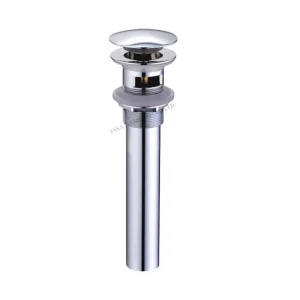

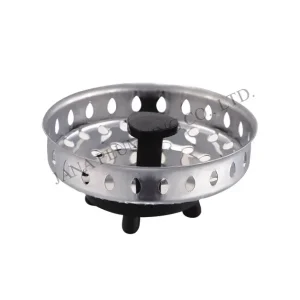

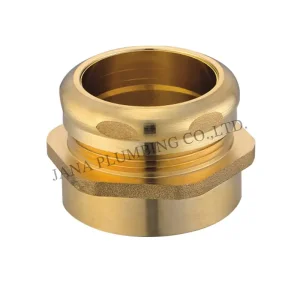

Additional Certified Plumbing Assemblies & Strainers
Explore our complementary replacement parts, basket strainers, and trap adapters manufactured to identical quality benchmarks.
Frequently Asked Questions (FAQ)
Expert answers regarding metal closet flange specification, installation mechanics, code compliance, and direct factory procurement.
