View SpecsExecutive Whitepaper: Technical Evolution of Two-Piece P.O. Plug Assemblies
In modern sanitary engineering and commercial building projects, the Two Piece P.O. (Patent Overflow / Post Office) Plug Assembly serves as a critical hydraulic interface connecting lavatory basins to sanitary drainage systems. Historically derived from standard commercial specifications, the "P.O. Plug" design separates the upper sink flange mechanism from the lower discharge tailpiece, facilitating simplified installation, superior alignment flexibility, and enhanced maintenance accessibility.
As leading China Two Piece P.O. Plug Assembly Manufacturers & Suppliers, JANA Plumbing Co., Ltd. has spearheaded the technical modernization of this essential fixture since 1998. Transitioning from legacy cast-bronze models to precision-machined, lead-free brass (CW617N / C37700) and forged stainless steel variants, contemporary P.O. plug assemblies now meet stringent international plumbing standards including ASME A112.18.2 / CSA B125.2, UPC, cUPC, and NSF/ANSI 61/372 zero-lead requirements.
Key Engineering Insight: The structural separation inherent in a Two-Piece P.O. Plug Assembly minimizes stress concentration on ceramic or cast-iron lavatory drain outlets. By isolating torque during tailpiece coupling, installers prevent micro-fracturing of delicate enamel coatings while guaranteeing hydro-static integrity up to 35 PSI.
Anatomy & Structural Kinematics
A standard two-piece assembly consists of two distinct sub-components linked by standardized IPS or straight pipe threads:
- The Upper Flange Body (Top Portion): Features an integrated overflow channel (for basins with pre-molded overflow cavities) or a smooth solid sidewall (for non-overflow vessel sinks). It houses the stopper mechanism—whether pop-up, tip-toe, twist-and-lock, or traditional rubber stopper with chain stay.
- The Lower Tailpiece (Discharge Extension): A cylindrical tube precision-lathed to standard outer diameters (typically 1-1/4" or 1-1/2" OD) that extends into the building's P-trap network. High-grade assemblies utilize seamless drawn brass tubing with a minimum wall thickness of 0.8mm to 1.2mm (17 to 20 Gauge) to resist corrosion and structural collapse under locknut pressure.
1998
Year Established
28,400 m²
Combined Dual-Base Area
200+
Skilled Technical Force
100%
UPC / cUPC Compliance
Market Dynamics
Global Commercial & Industrial Landscape
Understanding macroeconomic shifts, material compliance evolution, and supply chain diversification in sanitary hardware manufacturing.
Lead-Free Regulatory Shift
Global standards (such as California's AB1953 and US Safe Drinking Water Act) have reshaped raw material sourcing. Leading China suppliers now exclusively utilize low-lead (<0.25% weighted average) C37700 brass or dezincification-resistant (DZR) brass alloys to eliminate toxic leaching in public hygiene infrastructure.
Demand for Architectural Finishes
Beyond traditional bright electroplated Chrome (JN-5020 series), global commercial buyers require physical vapor deposition (PVD) coatings—such as Brushed Brass, Matte Black, Rose Gold, and Gunmetal—that withstand 96-hour neutral salt spray (NSS) testing without surface degradation.
Dual-Origin Sourcing Resilience
To mitigate geopolitical risk and tariff uncertainties, JANA Plumbing operates dual manufacturing bases: Headquarters in Yuhuan, Zhejiang, China, and a state-of-the-art 14,400 m² automated facility operated by Gateway Enterprise Corp. in Kabinburi, Thailand (established Dec 2023).
Manufacturing Roadmap & Metallurgical Engineering
Achieving zero-leakage durability in a Two Piece P.O. Plug Assembly requires uncompromising quality control at every phase of production. Below is the technical manufacturing roadmap executed across JANA Plumbing's production facilities:
1. Hot Forging & Hydro-Forming
Solid brass rods are induction-heated to 750°C and forged under high-tonnage hydraulic presses. This refines grain structure, eliminates micro-porosity, and delivers structural tensile strength exceeding 380 MPa.
2. Ultra-Precision CNC Lathe Turning
Threads (NPSM & G-Threads) are single-point turned on multi-axis CNC lathes to Class 2A/2B fit tolerances. Thread pitch accuracy guarantees smooth hand-tightening and drip-free locknut compression.
3. Automated Surface Finishing
Robotic polishing arms mirror-finish the brass bodies before entering multi-stage electroplating lines (Cu-Ni-Cr). Plating thickness adheres to ISO 2081 standards (Nickel ≥ 8μm, Chrome ≥ 0.25μm).
Future Technology Roadmap (2025–2030)
The next generation of P.O. plug assemblies will integrate smart environmental features and advanced materials science:
- Integrated Micro-Filter Catchers: Removable dual-layer hair and debris traps engineered inside the upper pop-up core, preventing drain blockages without impeding flow rate (> 35 GPM).
- Eco-Friendly PVD Deposition: Zero-VOC vacuum sputtering replaces chemical bath electroplating, reducing industrial carbon footprint by 45%.
- Self-Cleaning Silicone Gaskets: High-purity food-grade silicone seals impregnated with anti-microbial silver ion agents to inhibit bio-film accumulation in commercial washrooms.
Engineering Matrix
Two-Piece P.O. Plug Assembly vs. Alternative Drain Systems
Objective structural and material comparison for plumbing engineers and OEM procurement managers.
| Performance Metrics | JANA Two-Piece Brass P.O. Plug | Single-Piece Cast Drain Assembly | ABS / PVC Plastic Drain Assembly |
|---|---|---|---|
| Base Material Integrity | Solid Lead-Free Forged Brass (CW617N / C37700) | Cast Yellow Brass / Recycled Alloy | Injection Molded ABS / Polypropylene |
| Tensile & Yield Strength | High (> 380 MPa) - Zero Fracture Risk | Moderate (Prone to casting voids) | Low (Subject to thread shearing & warping) |
| Thermal Expansion Resistance | Excellent (-20°C to +120°C) | Good (-10°C to +90°C) | Poor (High thermal deformation rate) |
| Installation Alignment Flexibility | Superior (Rotatable two-piece tailpiece design) | Rigid (Requires exact P-trap alignment) | Moderate (Flexible plastic leads) |
| Code & Regulatory Compliance | UPC, cUPC, ASME A112.18.2, AB1953, NSF 61 | Varies by regional foundry | Basic residential codes only |
| Expected Service Lifespan | 25+ Years (Commercial Grade) | 10–15 Years | 3–5 Years |
Macro Solutions
Turnkey Sourcing Solutions Across Global Verticals
Tailored plumbing component engineering designed to meet diverse architectural and channel specifications.
Hospitality & Luxury Real Estate
For high-end hotel developments and residential skyscrapers, aesthetics and zero-noise operation are paramount. Our two-piece pop-up assemblies feature smooth-action brass spring cartridges tested for 100,000 operational cycles, paired with custom decorative finishes matching luxury faucet lines.
Healthcare & Public Infrastructure
Hospitals, educational campuses, and airport terminals require non-overflow, tamper-proof drain grids (such as JN-6114 19-hole overflow plates). Engineered to facilitate rapid water evacuation while preventing biological hazards and trash blockage.
RV & Modular Housing OEMs
Space-constrained mobile homes, recreational vehicles (RVs), and prefabricated modular bathroom pods benefit from light-weight, compact offset lavatory drains (JN-5003). Custom packaging, barcoding, and pre-assembled sub-components streamline assembly line installation.
Complete Drain Hardware Portfolio
Heavy-Duty Brass Strainers & Specialty Components
Explore our expanded lines of kitchen sink strainers, bath drains, and disposal flanges built for long-term reliability.
China Heavy Duty Brass Sink Strainer JN-1001-1 Manufacturer, Supplier
View Specs
China Replacement Strainer Basket JN-1108 Supplier, Suppliers
View Specs
Wholesale Pop-up, 2 Piece Brass Chrome JN-5020 Suppliers, Factory
View Specs
China Kitchen Sink Bottom Grid, Antique Brown JN-9888-6-ABP Factories, Factory
View Specs
Wholesale Offset Lavatory Drain JN-5003 Manufacturer, Factories
View Specs

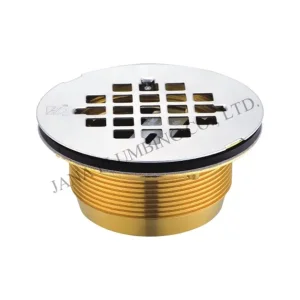

China No-Caulk Shower Drain JN-6301 Supplier, Suppliers
View Specs
China Replacement Deep Style Disposer Flange JN-1306-F Factories, Factory
View Specs
Wholesale Sink Strainer JN-1009 Manufacturer, Factories
View Specs
Procurement & Technical FAQ
Frequently Asked Questions
Direct technical answers to critical engineering, manufacturing, and code compliance queries from global buyers.
What is the key structural difference between a Two-Piece P.O. Plug and a standard single-piece drain?
A Two-Piece P.O. Plug Assembly separates the upper sink flange body from the lower tailpiece tube. This threaded two-piece architecture allows installers to independently seat and seal the upper flange into the sink bowl before threading on the tailpiece underneath. This eliminates stress twisting on plumber's putty/silicone seals, prevents basin micro-cracking, and provides adjustable height clearance for non-standard vanity depths.
Which plumbing codes and certifications apply to JANA Plumbing's two-piece assemblies?
Our drain assemblies are tested and certified under UPC and cUPC standards governed by IAPMO, complying fully with ASME A112.18.2 / CSA B125.2 for waste fittings. Furthermore, our brass alloys strictly conform to California AB1953 and NSF/ANSI 372 low-lead laws (<0.25% lead content by weight), ensuring immediate compliance for North American commercial retail and wholesale distribution.
Why does JANA Plumbing operate factories in both China and Thailand?
To offer global importers resilient dual-origin supply chain flexibility. Our headquarters in Yuhuan, Zhejiang, China (operating since 1998) houses extensive R&D and complex tooling creation. In December 2023, our 14,400 m² automated facility operated by Gateway Enterprise Corp. in Kabinburi, Thailand came online, allowing buyers to diversify tariff exposures and optimize logistics without compromising product engineering standards.
What raw brass materials are utilized in manufacturing P.O. Plugs?
We primarily utilize high-density forged brass alloys including CW617N, C37700, and DZR (Dezincification Resistant) lead-free brass for heavy-duty commercial SKUs. For cost-sensitive markets, high-grade AISI 304 stainless steel options are also available. All raw material melts undergo X-ray fluorescence (XRF) spectro-analysis to verify chemical composition prior to forging.
Can JANA Plumbing supply custom OEM finishes and private-label packaging?
Yes. With complete in-house tooling, hydraulic forming, CNC machining, electroplating, and PVD coating lines, we offer full OEM/ODM customization. We produce custom surface finishes—including Chrome, Brushed Nickel, Matte Black, Antique Brass, and Oil-Rubbed Bronze—alongside customized retail clamshells, color boxes, or bulk contractor packaging.
How do overflow vs. non-overflow Two-Piece P.O. Plugs differ?
Overflow P.O. plugs feature precision-cast rectangular side apertures in the upper body that align with the hidden overflow cavity of standard ceramic lavatories. Non-overflow P.O. plugs have a solid, un-punched cylindrical sidewall designed for vessel sinks or stone basins lacking an integrated overflow path, preventing water leakage between sink layers.
What lead time and Minimum Order Quantity (MOQ) are required for B2B orders?
Standard production lead times range from 30 to 45 days depending on the selected origin facility (China vs. Thailand) and coating requirements. Minimum Order Quantities generally start at 500 to 1,000 units per SKU for standard finishes, with flexible options for mixed-container shipments across our 16 product families.
