Featured Commercial Drain Assemblies & Sanitary Components
Precision-engineered brass, dielectric, and overflow assemblies manufactured to cUPC, ASME, and ISO 9001 standards.
Global Commercial & Industrial Status of Pop-Up Assemblies
Analyzing market growth, engineering standardizations, and macroeconomic shifts driving sanitary hardware procurement worldwide.
The global architectural and commercial plumbing sector is undergoing a massive shift towards durable, lead-free, and corrosion-resistant water discharge systems. Pop-up assemblies—the mechanical core of lavatory sinks, hospitality vanities, and commercial washrooms—are no longer viewed as simple hardware accessories. Today, engineering specifications demand tight hydrodynamic sealing, anti-clog strainers, structural resistance to thermal stress, and electroplated finish integrity capable of enduring harsh cleaning chemicals.
In high-density residential developments, luxury hotel chains, and public infrastructure projects across North America, Europe, and the Middle East, procurement managers face stringent building codes such as ASME A112.18.2 / CSA B125.2. As a result, sourcing direct from specialized professional pop-up assembly factories has become a strategic imperative for brand owners, stocking wholesalers, and master distributors seeking to maintain margin health while guaranteeing code compliance.
China Manufacturing Efficiency & Dual-Origin Supply Chain Resilience
China's sanitary hardware industrial clusters, particularly in Zhejiang (Yuhuan), represent the peak of global brass machining, forging, and surface treatment capabilities. Over the past three decades, the integration of multi-spindle CNC machining centers, automated robotic polishing lines, and continuous electroplating technology has allowed Chinese manufacturing hubs to drastically reduce unit production cycles while elevating dimensional accuracy to tolerances within ±0.01mm.
Information Gain Insight: Modern pop-up assemblies utilizing high-purity C37700 forged brass possess a tensile strength exceeding 380 MPa, outperforming traditional zinc-diecast alternatives by over 200% in fatigue crack resistance under continuous mechanical lever actuation.
Technical Anatomy: Brass vs. Engineered Polymer Pop-Up Assemblies
Understanding the engineering breakdown between solid brass drain bodies (e.g., JN-5008, JN-5014-NOF-L) and hybrid high-grade polymer models (e.g., JN-5015-2) is critical for structural specification across different commercial tiers.
| Specification Feature | Solid Heavy-Duty Brass (JN-5008 / JN-5014) | Chrome-Plated Poly-Pop Assembly (JN-5015-2) | P.O. Plug Umbrella Drain (JN-5012 / JN-5091-2) |
|---|---|---|---|
| Primary Body Alloy | Forged Solid Brass (C37700 / Lead-Free) | Engineered Polypropylene / High-Impact ABS | Extruded Solid Brass Flange & Body |
| Hydrostatic Pressure Rating | Up to 0.8 MPa (8 Bar) uninterrupted | Up to 0.5 MPa (5 Bar) uninterrupted | Up to 0.8 MPa (8 Bar) uninterrupted |
| Thermal Tolerance Range | -20°C to +120°C | 0°C to +80°C | -20°C to +120°C |
| Mechanism Type | Ball Rod Lever Linkage / Push-Button Spring | Push-Button Click-Clack / Top Drop-In | Spring Umbrella Pop-Up Stopper |
| Corrosion Resistance (CASS Test) | 24 Hours (ASTM B117 / ISO 9227) | 12 Hours (Plated Surface) | 24 Hours (Neutral Salt Spray Grade 10) |
| Primary Application | Commercial Hospitality, Luxury Residential | Budget Multi-Family, RV Outfitting | Modern Vessel Sinks, Minimalist Bathrooms |
Mechanics of Overflow vs. Non-Overflow Channels
Pop-up drain bodies must match the internal hydraulic design of the sink vessel:

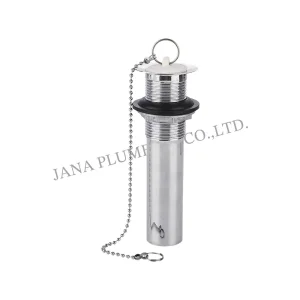

- With Overflow (W/OF): Integrated with a secondary side-cast cavity that aligns with the sink bowl's internal overflow channel (as seen in model JN-5091-2). Prevents basin flooding by routing excess water back into the main waste line.
- Non-Overflow (NOF): A solid cylindrical body wall (e.g., JN-5014-NOF-L) engineered specifically for vessel sinks, glass bowls, and stone countertop basins lacking a built-in overflow passage. Using a slotted drain on a non-overflow vessel results in catastrophic cabinet water damage.
Localized Application Scenarios & Global Plumbing Standards
A single drain assembly specification cannot fulfill all worldwide building codes. Factories specializing in professional OEM manufacturing must adapt tailpiece lengths, thread geometries, and seal durometers to match destination market protocols.
Strategic Sourcing & Quality Assurance Framework for B2B Buyers
Evaluating pop-up assembly manufacturers requires rigorous audit criteria beyond unit pricing. Professional procurement leads should analyze six critical quality gates during factory qualification:
- Spectrographic Brass Verification: Testing incoming raw brass stock via optical emission spectrometers to ensure exact copper-zinc ratios and confirm lead levels comply with NSF/ANSI 61 standard limits.
- Thread Pitch & Tolerance Gauging: Utilizing Go/No-Go thread plug gauges on 100% of CNC-machined waste bodies to prevent thread stripping or cross-threading during jobsite installation.
- Rubber Gasket Durometer & Recovery Testing: Silicone and EPDM sealing washers must maintain elasticity (Shore A hardness 55-65) across extreme temperature cycles without hardening or cracking.
- Micro-Thickness Electroplating Audit: X-ray fluorescence measurement to verify multilayer plating thickness (typically 8-12 µm Nickel layer topped with 0.25-0.5 µm Chrome or PVD finishes like Brushed Brass and Matte Black).
- Spring Cycle Fatigue Analysis: For push-button click-clack mechanisms, internal stainless steel springs (SUS304/SUS316) undergo automated 100,000-cycle continuous compression testing under water immersion.
- Packaging Integrity: Retail box drops and bulk master carton stacking tests (ISTA 1A standards) to ensure electroplated surfaces do not rub, scratch, or tarnish during cross-ocean container transport.
Complete Wholesale Product Catalog & Hardware Components
Explore our extended lineup of sink strainers, disposer flanges, meter couplings, and specialty pop-up assemblies.
Future Trends in Sanitary Hardware & Drain Assembly Manufacturing
As smart building management systems and eco-sustainable construction standards evolve, drain assembly factories are innovating rapidly in three core tech domains:
Technical & Procurement FAQ (Frequently Asked Questions)
Expert answers on pop-up assembly customization, material standards, minimum order quantities, and compliance certifications.
